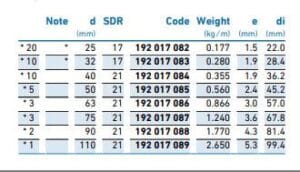

Pipe PVC-U transparent SDR21 /Series S10

Model:
• Material: PVC-U
• Dimension: acc. to DIN 8062
• Colour: transparent – Transparency depends on outer diameter and wall thickness! Chemical
and thermical stress can cause discolouration
• Pipe length: 5000mm, with plain ends
• Approval: food grade, with declaration of conformity acc. EU 10/2011 and EU 1953/2004, Approval on request
• Attention: Pressure rates refer to operating temperatures at 20°C. Higher temperatures and
aggressive flow media reduce pressure load (see above DIN and our technical documentation).
Pressure load capacity has to be determined in consideration with safety demands of the respective applications and calculated in accordance.
• * SDR17
• * pcs in foil
