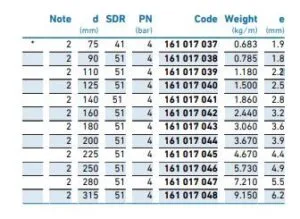

Pipe PVC-U grey SDR51/PN4/S25

Model:
• Material: PVC-U
• Dimension: acc. to DIN 8061/62
• Colour: darkgrey RAL 7011
• Pipe length: 5000mm, with plain ends
• * SDR 41
• Note 2: according to DIN 8062
• Note 3: DVGW approval + DIN plus
• Attention: Pressure rates refer to operating temperatures at 20°C. Higher temperatures and
aggressive flow media reduce pressure load (see above DIN and our technical documentation).
Pressure load capacity has to be determined in consideration with safety demands of the respective applications and calculated in accordance.
